TWOWIN T906G: Revolutionizing Rail Transportation with NVIDIA Jetson AGX Orin Edge AI

Abstract

The integration of advanced artificial intelligence into rail transportation systems represents a transformative leap toward enhanced safety, efficiency, and automation. The TWOWIN T906G Edge Computer, powered by the high-performance NVIDIA Jetson AGX Orin module, stands at the forefront of this revolution. This robust edge computing platform delivers an exceptional 275 TOPS of AI computing power, enabling the real-time processing of complex data directly onboard rail vehicles. Its application in rail transit spans from predictive maintenance and obstacle detection to passenger behavior analysis and in-cabin security monitoring. By bringing server-level computational capabilities to the challenging edge environments of rail systems, the T906G facilitates smarter, safer, and more reliable transportation solutions. This article explores the specific application scenarios, technical advantages, and implementation frameworks of deploying the TWOWIN T906G in modern rail operations.

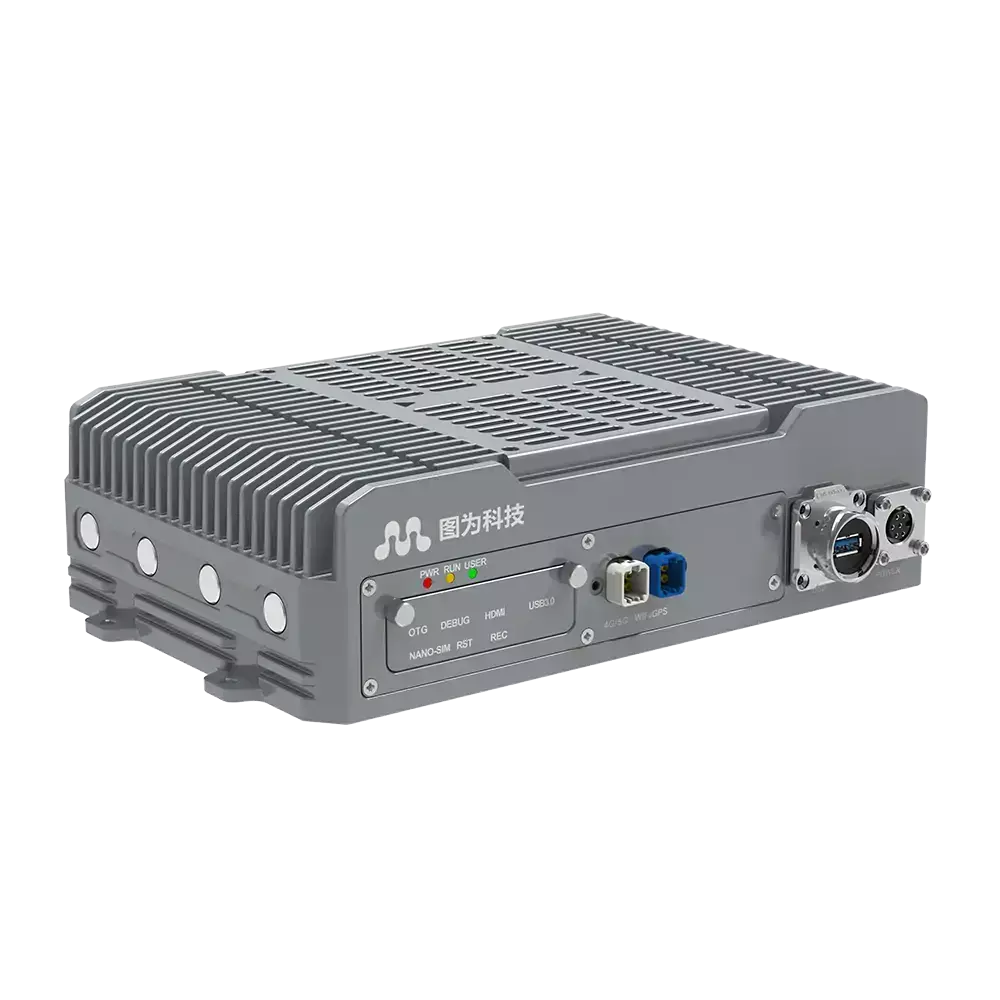

1 Product Introduction: TWOWIN T906G Edge Computer

The TWOWIN T906G is a robust AI edge computing device built around the powerful NVIDIA Jetson AGX Orin platform. It is engineered to meet the demanding requirements of industrial applications, including the high-vibration, wide-temperature-range environments typical of rail transportation.

Core AI Performance: At its heart, the T906G leverages the Jetson AGX Orin to deliver up to 275 TOPS of AI computing power. This server-grade performance in a compact form factor is crucial for processing multiple, concurrent AI models directly on the train without relying on cloud connectivity.

Key Processing Units:

GPU: A 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores, clocked at up to 1.3 GHz. This is instrumental for accelerating deep learning inference tasks like computer vision.

CPU: A 12-core Arm Cortex-A78AE v8.2 64-bit CPU, ensuring robust handling of complex computational workflows and system operations.

Memory and Storage: The device is equipped with 64GB of 256-bit LPDDR5 memory running at 204.8 GB/s and a 128GB SSD for system storage, providing the necessary bandwidth and capacity for data-intensive AI applications.

Rich I/O Connectivity: Designed for seamless sensor integration, a critical aspect for autonomous systems, the T906G features:

8 GMSL1/GMSL2 camera inputs for high-speed video capture.

Multiple USB 3.0/2.0 ports and a Type-C OTG port.

2x CAN 2.0b buses, commonly used for vehicle communication networks.

3x RS232/RS485 serial ports and GPIO for industrial control.

1x 10GbE and 1x GbE Ethernet ports, along with dual-band Wi-Fi and 4G/5G connectivity for high-speed data transfer and communication.

Ruggedized Design: The T906G boasts an IP65 protection rating, making it dust-tight and protected against water jets, and is capable of operating in a wide temperature range (e.g., -20°C to 60°C as noted in similar Jetson-based industrial systems), ensuring reliability in harsh railway environments.

2 Technical Advantages of T906G in Rail Transit

The deployment of the TWOWIN T906G in rail systems offers several distinct technical advantages over traditional computing solutions.

2.1 Unparalleled Onboard AI Processing

The core value of the T906G lies in its ability to perform high-performance AI inference at the edge. With 275 TOPS, it can process data from multiple cameras and sensors in real-time. This capability is vital for time-sensitive applications like collision avoidance, where sending data to the cloud and back would introduce unacceptable latency. As seen in previous AI deployments for rail safety, edge devices allow for complex model execution directly on the vehicle, enabling immediate response to track conditions.

2.2 Robustness for Demanding Environments

Railway applications subject hardware to significant shock, vibration, and extreme temperatures. The T906G, leveraging the industrial-grade pedigree of the Jetson platform, is designed to withstand these conditions. Its rugged build ensures continuous operation where standard commercial computing hardware would fail, a critical factor for mission-critical safety systems in trains.

2.3 Comprehensive Sensor Fusion

The rich I/O suite of the T906G allows it to function as a central sensor fusion hub. It can ingest data from a diverse array of sensors simultaneously—including GMSL cameras, lidar, radar (via Ethernet or CAN), and audio sensors. This multi-sensor data fusion is key to building a comprehensive and redundant perception system for the train, allowing it to understand its environment with much higher accuracy than systems relying on a single sensor type.

3 Key Application Scenarios in Rail Transportation

The powerful combination of the T906G's hardware and AI capabilities enables its use in several critical rail transit scenarios.

3.1 Track Intruder and Obstacle Detection

One of the most vital safety applications is the real-time detection of obstacles or unauthorized personnel on the tracks. The T906G can run sophisticated object detection and tracking models (e.g., based on TensorFlow or TensorRT) on video feeds from strategically placed cameras on the train.

Implementation: The system would use a multi-stage AI pipeline. A primary detector identifies potential obstacles (people, vehicles, debris), while a tracker module follows them across sequential video frames. A classifier can then further categorize the object. This approach, similar to one documented for freight train safety, helps in distinguishing between, for example, track maintenance workers and genuine intruders.

Benefit: Provides the train operator or an automated control system with early warnings, potentially preventing accidents and saving lives.

3.2 Signal and Sign Recognition

Railways use a complex system of signals, signs, and markers to communicate speed limits, track conditions, and movement authorities to the driver. The T906G can automate the interpretation of these signals.

Implementation: AI models are trained to detect and classify various railway signals and their states (e.g., color, flashing patterns). An associated optical character recognition (OCR) model can read any alphanumeric codes present on the signs. This information is then mapped to a predefined set of rules and presented to the operator or fed directly into the train's control system.

Benefit: Reduces the chance of human error, enhances operational efficiency, and is a foundational technology for higher levels of train automation.

3.3 Predictive Maintenance

Unscheduled maintenance can cause significant delays and increase operational costs. The T906G enables a shift towards predictive maintenance by analyzing data from onboard sensors.

Implementation: Vibration sensors and microphones placed on bogies, wheels, and engines can collect acoustic and oscillatory data. The T906G can run machine learning models (e.g., anomaly detection algorithms) on this data to identify patterns indicative of impending faults, such as worn-out wheels or bearing defects. Alerts can be generated when the system detects deviations from normal operation.

Benefit: Allows maintenance to be scheduled proactively, minimizes train downtime, prevents catastrophic failures, and enhances overall fleet reliability.

3.4 In-Cabin Security and Passenger Analysis

Ensuring passenger safety and comfort within the train cars is another key application area.

Implementation: Using video analytics from cameras installed inside carriages (with appropriate privacy safeguards), the T906G can monitor for unusual events such as falls, altercations, or suspicious unattended items. It can also analyze passenger flow to optimize cleaning schedules, climate control, and provide data for crowd management.

Benefit: Improves response times for security and medical incidents, enhances the passenger experience, and provides valuable operational intelligence to train operators.

4 System Architecture and Implementation

Deploying the T906G effectively requires a well-thought-out system architecture.

Hardware Setup: The T906G would be installed onboard the train, connected to its 12-36V DC power system. Multiple GMSL cameras would be mounted at the front, sides, and rear of the train for a 360-degree view, and inside carriages for internal monitoring. Other sensors (e.g., accelerometers, thermal sensors) can be integrated via the available CAN, serial, or GPIO interfaces.

Software Stack: The system would run on the NVIDIA JetPack SDK, which includes a Linux OS, CUDA, cuDNN, and TensorRT software libraries. This environment is ideal for developing and deploying optimized AI applications. Pre-trained models from the NVIDIA NGC catalog can be fine-tuned for specific railway tasks using the TAO Toolkit, significantly reducing development time.

AI Pipeline Design: A modular software architecture, as demonstrated in a freight train safety prototype, is highly effective. Separate Python processes or modules can handle object detection, tracking, signal classification, and business logic. This ensures that the failure of one component doesn't necessarily crash the entire system and allows for easier updates and maintenance. TensorRT should be used to optimize the trained models, leveraging FP16 precision to achieve high inference speeds with minimal accuracy loss.

5 Conclusion

The TWOWIN T906G Edge Computer, with its foundation in the NVIDIA Jetson AGX Orin platform, represents a paradigm shift for intelligence in rail transportation. Its immense AI processing power, coupled with a ruggedized design and comprehensive connectivity, makes it an ideal solution for deploying mission-critical AI applications at the edge. From enhancing safety through real-time obstacle detection and signal recognition to improving operational efficiency via predictive maintenance and passenger analytics, the T906G empowers railway operators to build safer, smarter, and more efficient transit systems for the future. The ongoing collaboration between hardware innovators like TWOWIN and AI technology leaders like NVIDIA is paving the way for the fully autonomous, zero-incident railway networks of tomorrow.
